System Features
Automatic Egg Collection
After hens lay eggs in the nest, eggs roll gently along the inclined soft pad to the bottom conveyor belt, which transports eggs to the centralized collection end automatically. This design avoids egg damage caused by stepping or pecking, with an egg breakage rate controlled within 1%.
Automatic Hen Ejection
Equipped with a timing-driven soft rod system, it gently drives hens out of the nest after a set time (usually 5-10 minutes after laying). This prevents hens from occupying the nest for a long time, avoids nest contamination and egg pecking, and maximizes nest utilization.
Material & Structure
The main frame is made of galvanized steel and high-strength engineering plastic, which is corrosion-resistant, wear-resistant and easy to clean. The semi-closed nest entrance simulates the natural laying habits of hens, reducing stress and improving laying willingness.
Automatic Drinking System
Nipple-type drinkers are installed along the length of the house, providing clean drinking water for layers at any time. The sealed design effectively avoids water source pollution. The height of the drinker line is adjustable to adapt to layers of different ages, and it is equipped with a pressure reducing valve and filter to ensure stable and clean water supply.
Automatic Feeding System
Pan-type automatic feeders are connected to the main feed line, which can realize timed and quantitative feeding, greatly reducing manual labor. The pan design prevents feed waste and avoids competition among layers, ensuring uniform feed intake for each chicken.

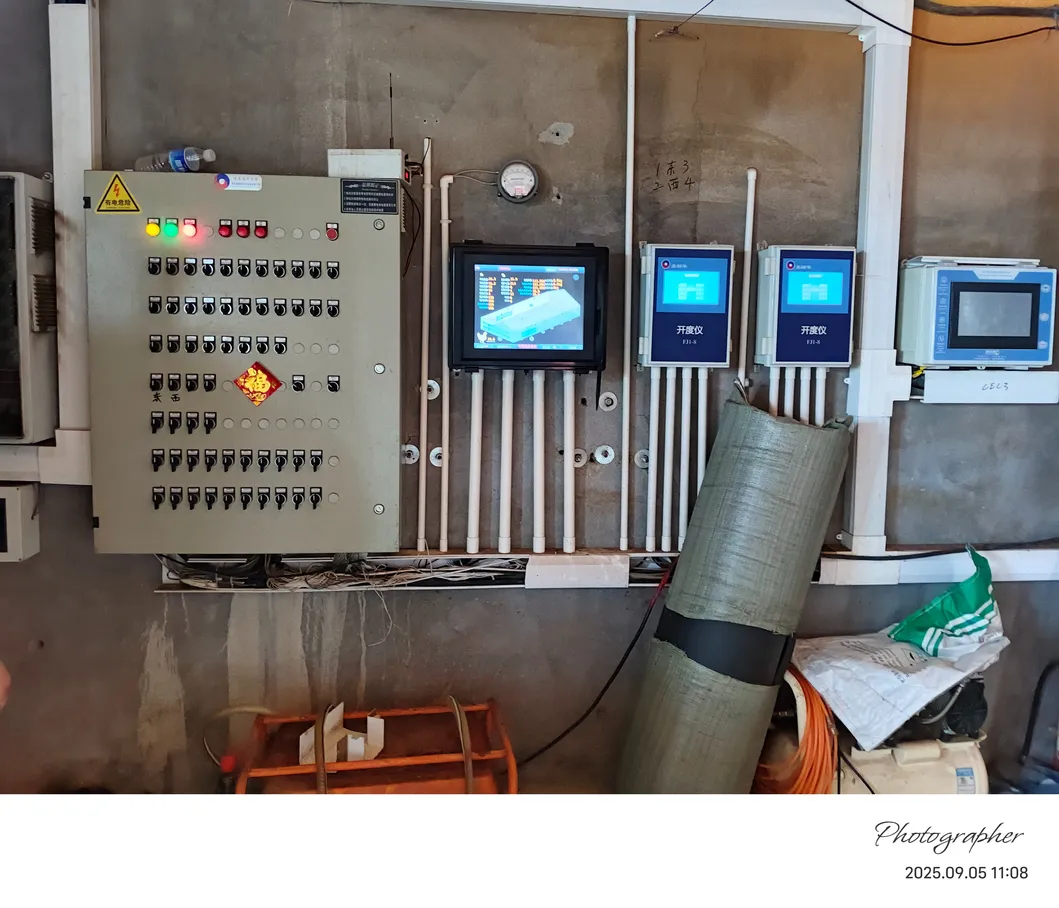

Environmental Control System
The house adopts an arched greenhouse structure, equipped with top ventilation windows, side-wall cooling pads and axial flow fans, realizing negative pressure ventilation + evaporative cooling to precisely control temperature, humidity and air quality inside the house. The floor is covered with litter or soil, suitable for the free-range behavior of floor-raised layers, and convenient for manure management.
Frequently Asked Questions
About Product & Specification
Q: What types of poultry equipment do you supply?
A: We supply full sets of poultry farming equipment including battery cages, automatic feeding lines, drinking systems, manure removal systems, ventilation fans, heaters, incubators, climate control systems and related accessories for broilers, layers and breeders.
Q: Can your equipment be customized?
A: Yes. We can customize cage size, layout, material, voltage, control system and installation plan according to your farm size, poultry type and local conditions.
Q: What material is the cage made of?
A: Mainly hot-dip galvanized steel wire / Q235 cold galvanized steel, strong anti-corrosion, long service life up to 15-20 years.
About Capacity & Output
Q: How many birds can one set of equipment hold?
A: It depends on the model. Normally: Layer cage: 60-120 birds per group, Broiler cage: 80-160 birds per group. We can design according to your target capacity.
Q: Is the system fully automatic?
A: Yes. Our complete system supports automatic feeding, drinking, manure cleaning, egg collection and environmental control, greatly reducing labor cost.
About Voltage & Power
Q: What voltage do you support?
A: Standard: 220V / 380V, 50/60Hz. We can also customize 110V, 415V, 440V etc. for different countries.
Q: How much power does the whole system consume?
A: Depends on farm scale. We will provide detailed power calculation and energy-saving scheme before order.
About Installation & Service
Q: Do you provide installation service?
A: Yes. We can send engineers to your farm for installation guidance, training and commissioning. Travel expenses and accommodation shall be covered by the buyer.
Q: How long does installation take?
A: Normally 7-20 days depending on the farm size and quantity of equipment.
Q: Do you offer operation training?
A: Yes. We provide free on-site or video training for your workers on operation, daily maintenance and troubleshooting.
About Warranty & After-sales
Q: What is your warranty period?
A: 12-24 months warranty for main equipment. Lifetime maintenance service provided after warranty.
Q: What if parts are damaged during transportation?
A: We use strong export wooden case packaging. If damage occurs due to our packing problem, we will resend free replacement parts immediately.
Q: How about after-sales support?
A: We provide 24-hour online technical support, quick spare parts supply and remote diagnosis.
About MOQ & Price
Q: What is your MOQ?
A: Small order: 1 set of cages or 1 set of fan/incubator. Large-scale farm: we recommend complete sets for better efficiency.
Q: Is the price FOB or CIF?
A: We can quote FOB, CFR, CIF, EXW according to your requirement.
Q: Does the price include installation?
A: Normally not included, but we can offer a separate quotation for installation service.
About Packaging & Shipping
Q: How do you pack the equipment?
A: Fumigated plywood cases / cartons with foam protection, suitable for sea and land transportation.
Q: How long is the delivery time?
A: 7-25 days after deposit received, depending on order quantity and customization.
About Quality & Certification
Q: Do you have quality certification?
A: Our products meet ISO, CE standards. We can provide test reports and certificates for customs clearance.
Q: Are your machines durable for high temperature / humid environment?
A: Yes. Anti-corrosion, anti-rust and waterproof design suitable for poultry house environment.
